Technology:
Therapy of epidermis and dermis pigmentation
Utilizing the explosive effect of the Nd: YAG laser, the laser permeate the epidermis into the dermis which includes amount of pigment mass. Since the laser pulses in nanosecond but with super high energy, the shot pigment mass swell quickly and breaks into small pieces, which will be eliminated through metabolic system.
Therapy of the dilatation of capillary vessel
Utilizing the heat effect of the Nd: Yag Laser, the laser is absorbed by the hemachrome in the capillary vessel, then the capillary vessel become blocked and disappear.
Carbon peeling treatment
The 1064nm wavelength laser directly acts on the carbon cream, blasting the toner, and the toner absorbs pore oil and dirt. At the same time, the laser can stimulate the dermis to produce a large amount of collagen, thereby achieving the function of shrinking pores and whitening.
Indication:
Dermis pigmentation: Birth mark, such as: Ota nevus, Ito nevus, black nevus
Pigment, such as: sun-burn spots, age spots, speckle, freckle, senior fleck
Man made pigment: Blue, black, red, brown tattoo, lips line, eyebrow line
Epidermis pigmentation, Speckles: such as freckle, senior flecks, coffee spot......
Vascular lentigines: vascular lesion, spider vessel, spider veins
Skin rejuvenation with laser peeling
Hair removal

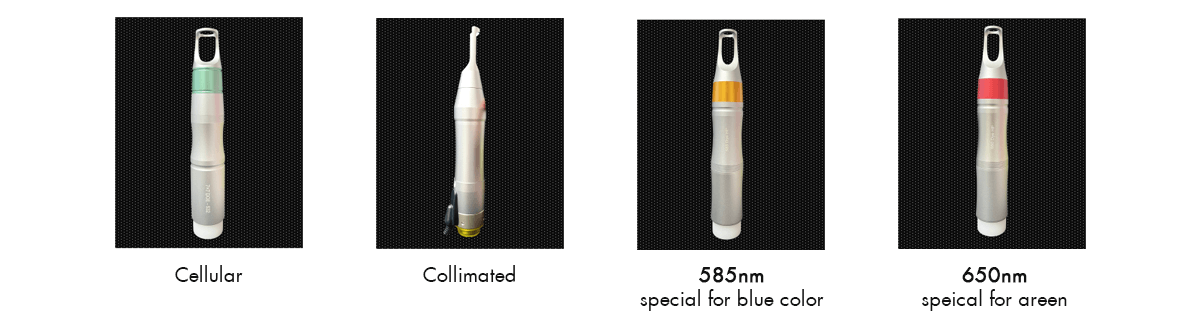

Applicators
532nm: Red, orange, brown, stronger exfoliation
1064nm: Black, blue, deeper penetration
585nm : Yellow tattoo
650nm : Green tattoo
Collimated handle : Carbon peeling
Cellular : Skin rejuvenation
Fractional : Skin rejuvenation
Advantages
Advantages :

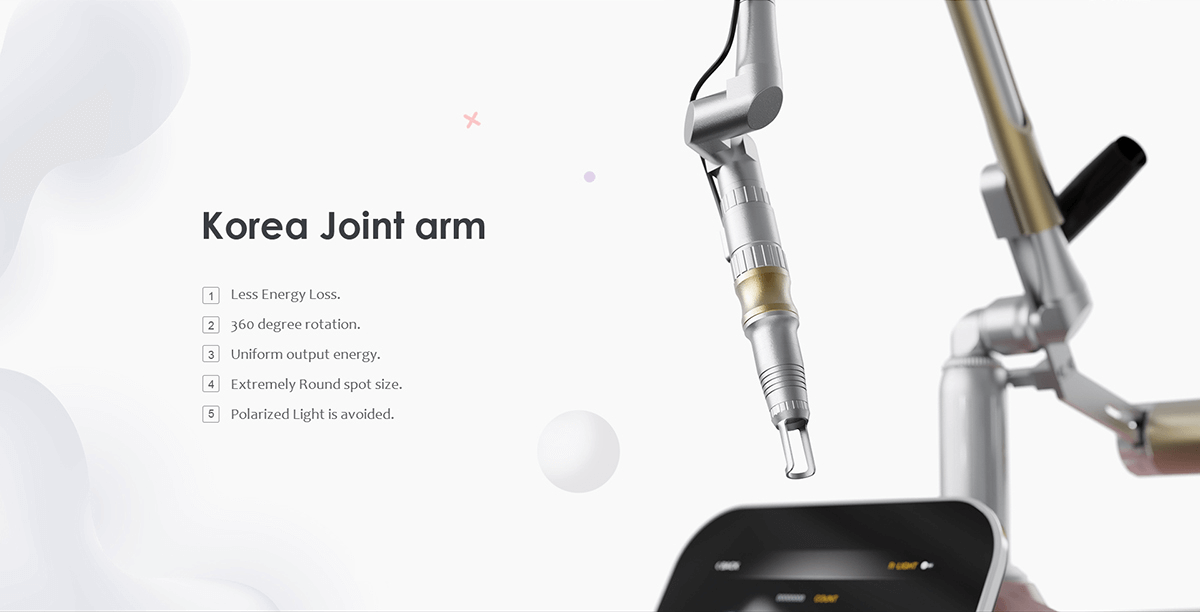

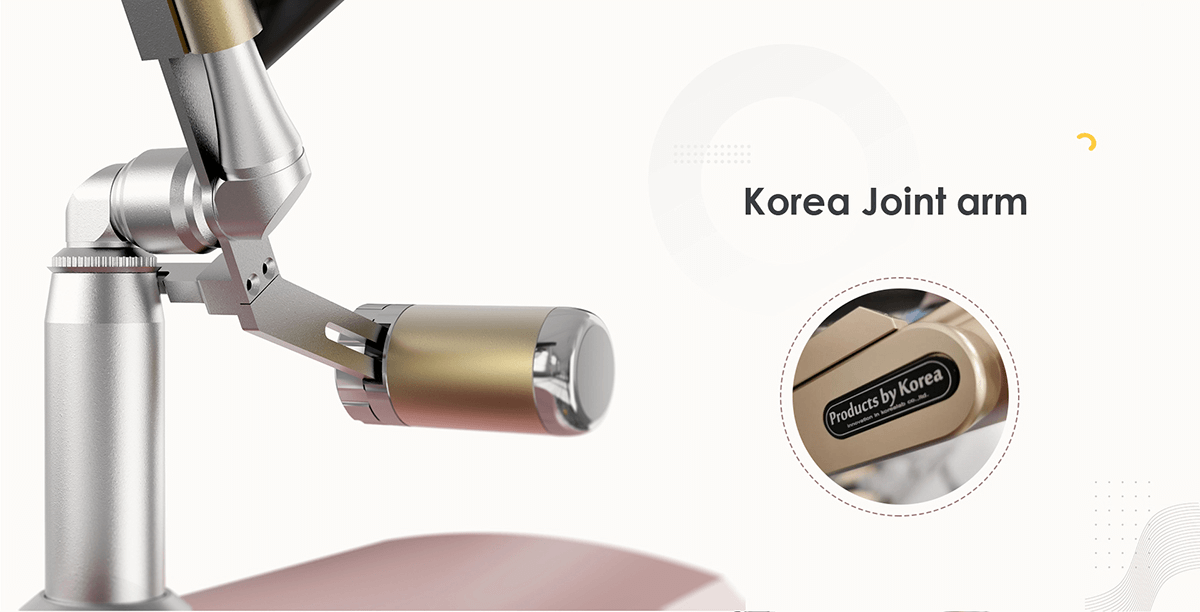

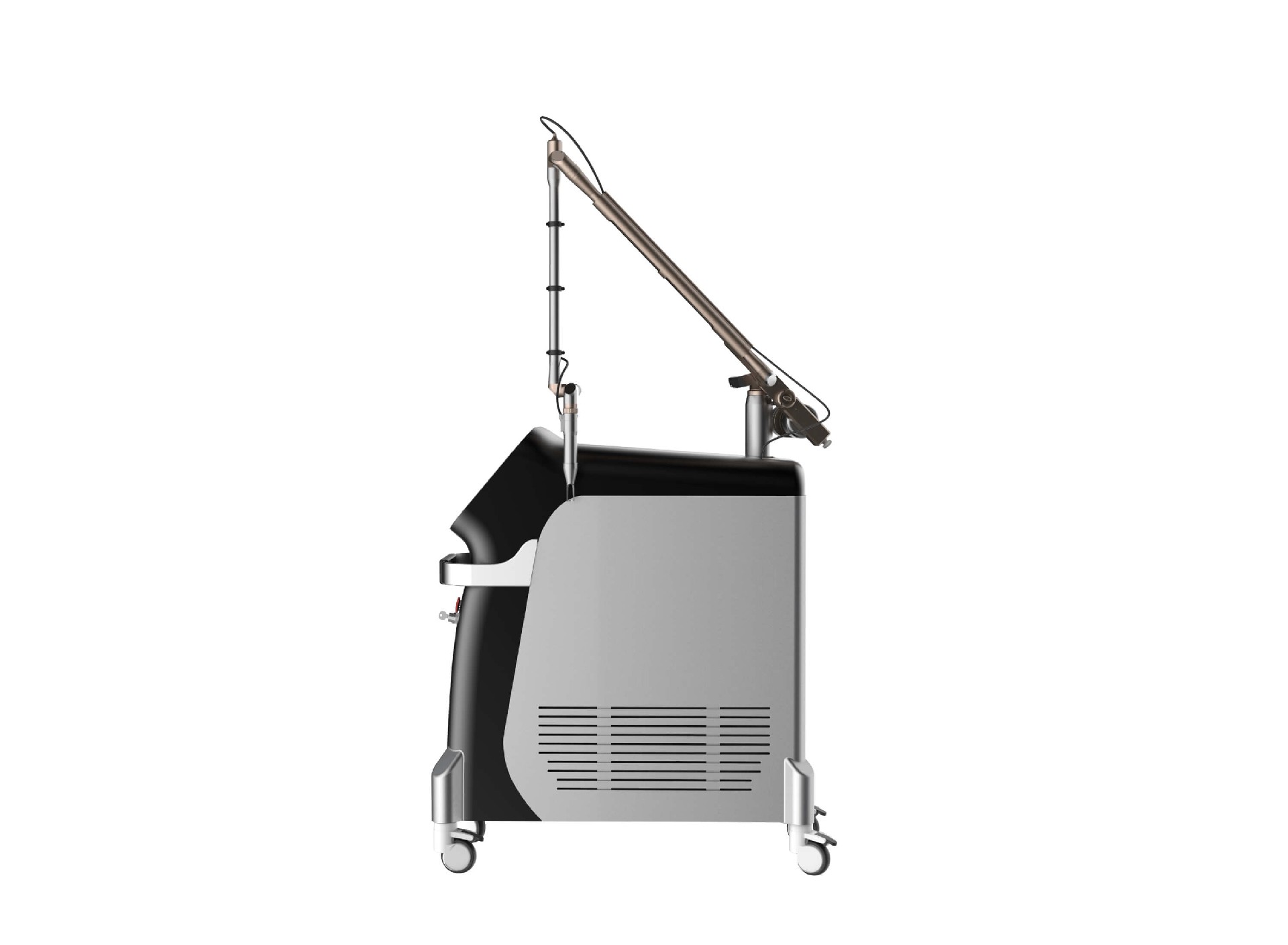

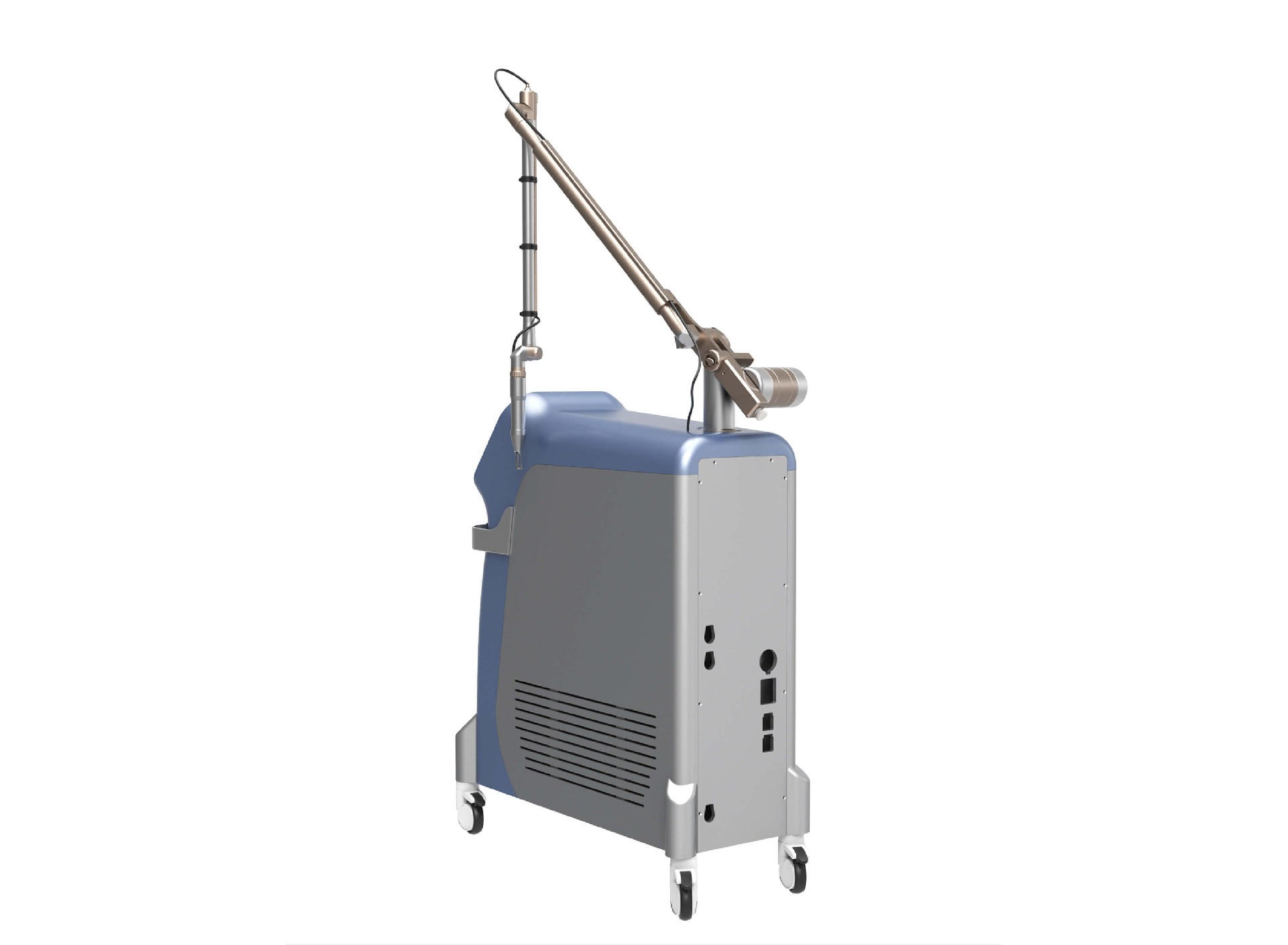

7-joint Korea Arm
Less energy loss
360 degree rotation
Uniform output energy
Extramely round spot size
Polarized light is avoided

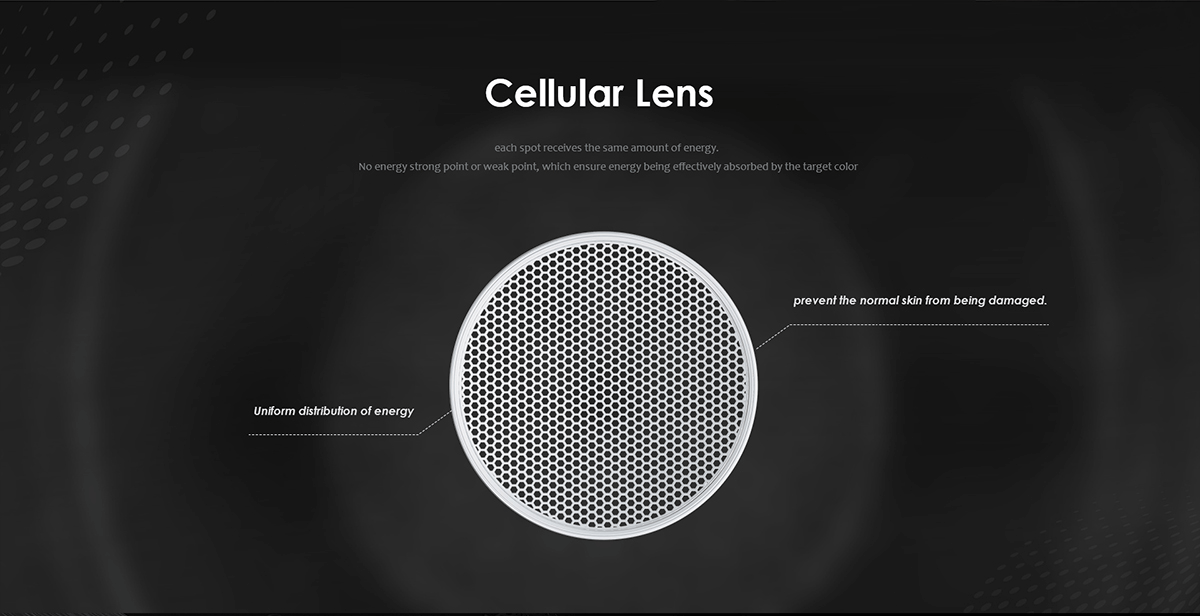

Uniform energy through the cellular mirror

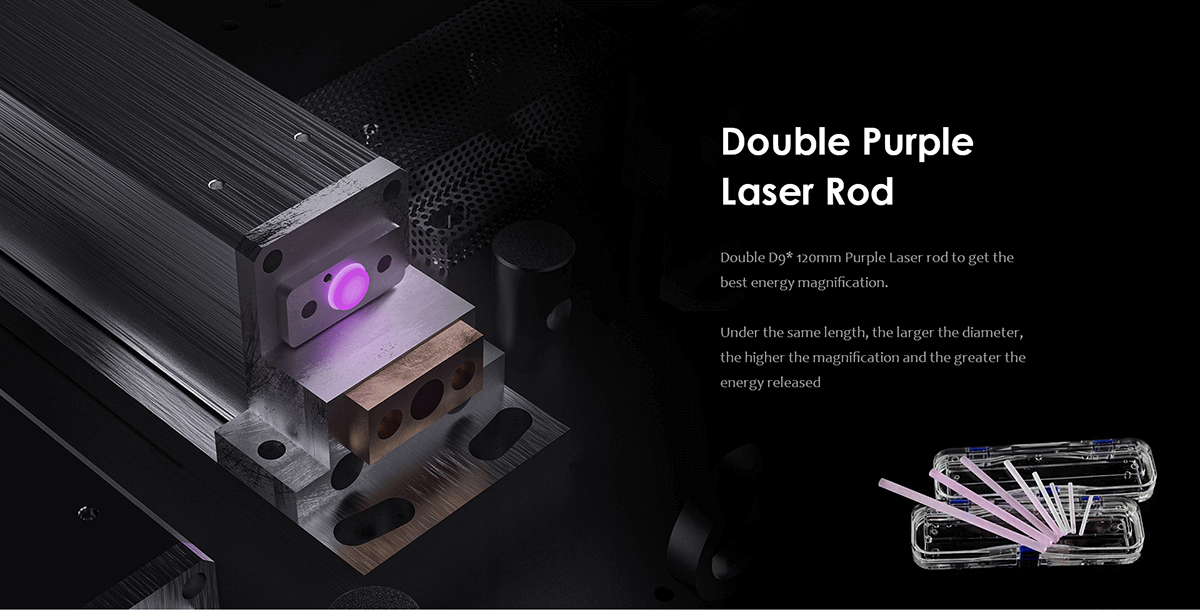

Double purple rod : get best energy
Specification:
System type | Picosecond | Long pulse |
Wavelength | 1064nm 532nm | 1064nm 532nm |
Pulse Width | 2000ps | SLP : 300µs MLP : 1 ~ 5000µs |
Maximum Rep Rate | Up to 10 Hz | Short: Up to 10 Hz Long: 1hz |
Spot size | 2-10mm | 2-10mm |
Maximum Energy | Single pulse: 1064nm: 100-800mj; 532nm:100-400mj double pulse : 1064nm:100-1600mj, 532nm:100-800mj | SLP: 100-3000mj MLP: 1-30J |
Light guide beam: | 650nm red laser | 650nm red laser |
Power requirement: | 220V,10A,50/60Hz; | |
Machine dimensions: | 680mm×400mm×820mm | |
Net weight: | 80KG |
Before & After
